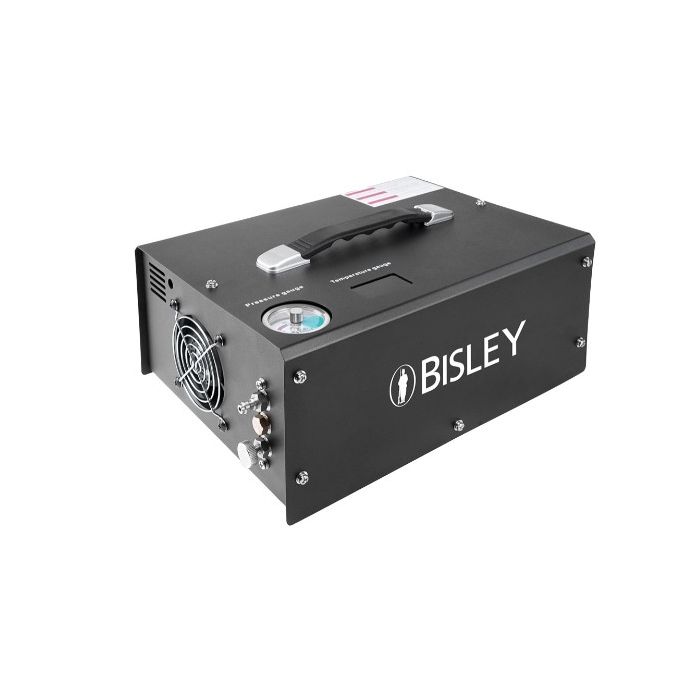

The Bisley Quick Fill is a portable high-pressure air compressor designed specifically for filling PCP airguns. With a maximum working pressure of 300 bar, it provides a convenient alternative to manual hand pumps or larger compressors.

Powered by a 350W motor, the Quick Fill can be used from either UK mains power or a12V vehicle battery, making it useful both at home and at the range. The power source is selected manually, so make sure the voltage setting is correct before switching the compressor on. The last thing you want is to discover the wrong setting after the fact.

The compressor produces an airflow rate of approximately 8 litres per minute, with a stated fill time of around 18 minutes for a 500cc reservoir from 0 to 300 bar. Actual filling times will vary depending on reservoir size, starting pressure and the final fill pressure.

 At 8.75kg and measuring approximately 38 x 31 x 25cm, the Quick Fill is relatively compact for a high-pressure PCP compressor and can be transported when required.

The built-in cooling fan helps manage operating temperature, while the oil-free design means there is no compressor oil to maintain or introduce into the filling system.

An automatic stop function helps prevent the compressor from continuing to run once the selected pressure has been reached, making filling considerably less hands-on than using a manual pump.

 We strongly recommend using a suitable dry air filtration system when filling PCP airguns with a compressor.

Atmospheric air contains moisture, and compressing that air can introduce water into the filling system. Over time, moisture entering the rifles reservoir and pressure components can contribute to corrosion and other problems.

For this reason, we recommend pairing the Quick Fill with a suitable dry pack such as the Hills Dry Pac Pro. Using the compressor without suitable moisture control risks introducing water into your PCP system, particularly during repeated filling.

Working Pressure: 4500psi/300bar

Weight: 8.75KG

Size 38x31x25cm

Voltage 12V/220V

Air flow rate: 8l/min (500cc in 18 minutes from 0 to 300 bar)

Cooling System: Fan

Power: 350W

Warranty – One year
